100W 18V Polycrystalline Solar Panel for 12v Battery off Grid System
Solar Home System Free Shipping
1. Ideal Daily Output: 500W (depending on the availability of sunlight)
2. Basic component for on-grid, off-grid solar panel system, caravan, RV, boat, Green house solar panel system
3. Easy Installation with pre-drilled hole. each solar panel comes with 90cm 12awg cable with MC4 Male/Female quick connector.
4. By-Pass Diode minimized the impact of shade.

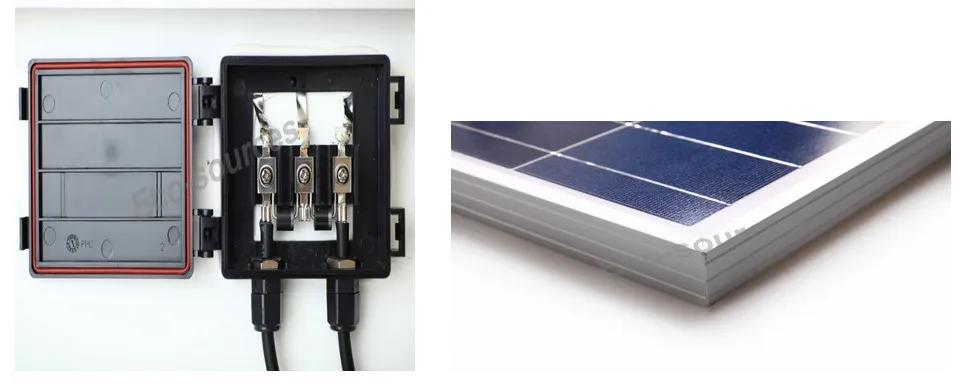

5. Waterproof IP-65 Rated Junction Box : Advanced water and dust proof level (complete protection against environmental particles and low pressure water jets).
6. Resistance to Salt Corrosion and Humidity
7. Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades
as well as withstand high winds (2400Pa) and snow loads (5400Pa),
Lightweight anodized aluminum frame and reinforced Safety and anti-Reflection coated glass 3.2mm thick (tempered + patterned)
| Rated power | 100w |
| Voc | 22.41V |
| Vop | 17.9V |
| Short circuit current (Isc) | 6.2A |
| Working current (Iop) | 5.59A |
| Output Tolerance | ±3% |
| Temperate coefficient of Isc | (010+/- 0.01 )%/ degree |
| Temperate coefficient of Voc | – (0.38 +/-0.01 )%/ degree |
| Temperate coefficient of power Voc | -0.47%/degree |
| Temperature range | –40 degree to +80 degree |
| Frame | Heavy duty aluminum |
| Kind of glass and its thickness | Low Iron, high transparency tempered glass of 3.2mm |
| SLA Battery Voltage | 12V |
| Dimensions (L x W x H)mm | 996*665*35mm(26.16*39.3*1.37 in) |
| Weight | 24lbs(11KG) |
| Warranty | 25-year transferable power output warranty: 5-year/95% efficiency rate, 10-year/90% efficiency rate, 25-year/80% efficiency rate 5-year material and workmanship warranty |
At STC(Standard Test Conditions).1000w/m2
25 degree cell temperature,AM1.5 spectrum
1pc 100W 12V polycrystalline solar panel
The solar panel is widely be used
1. Any large or small on-grid or off-grid solar power stations.
2. Commercial and industrial building roof-top systems
3. Residential roof-top systems
4. Any commercial or industrial ground mounts systems
5. Other industrial or commercial applications
1. All goods are in stock, the transaction will be handled within 1 business day.
2. Items will be sent out within 3 days after we received your payment.
3. we also have this item in the Eu , USA, Au stock,when there have foreigner stock, this item will be free tax for local buyer
When the foreigner stock is sold out, we will ship it from China by Fedex or UPS.
4. Please note us your contact details include your phone number for easy contacting from express guy.
Thank you for your kindly understand.
FAQ
1. Cleaning Panels
Use warm water and a soft sponge or cloth to clean your panel and keep the controller dry.
2. Will hail hurt my solar panel?
All glass used in solar panels is toughened & factory tested to International standards. The small hail is no problem.
3. Do the solar panel systems make any noise?
No, they are not noise and you can use them in all national parks.
4. Will dirty glass on my solar panel reduce the power it creates?
Yes, please keep the glass area of your solar panel as clean as possible. All dirty marks or films on the glass surface will reduce the efficiency.
Keep it free from bird and bat dropping’s as they may permanently mark the glass surface. Clean with a moist soft cloth.
5. What can I run with a solar panel?
The mono solar panels will charge a battery while it’s in the sun. This type of unit is commonly used to run lights, TV’S, DVD
Guarantee:
Customers should inspect the item(s) and notify us within 7 days if have any problems. If you have any problem with your item,
please contact us before leaving feedback. All items must be issued an RMA number before they returned.
The shipping cost of return goods is to be paid by the Buyer.
It’s have 12 months Warranty from the date of purchase covering manufacturing defects.
This warranty excludes any damage caused by the human.
