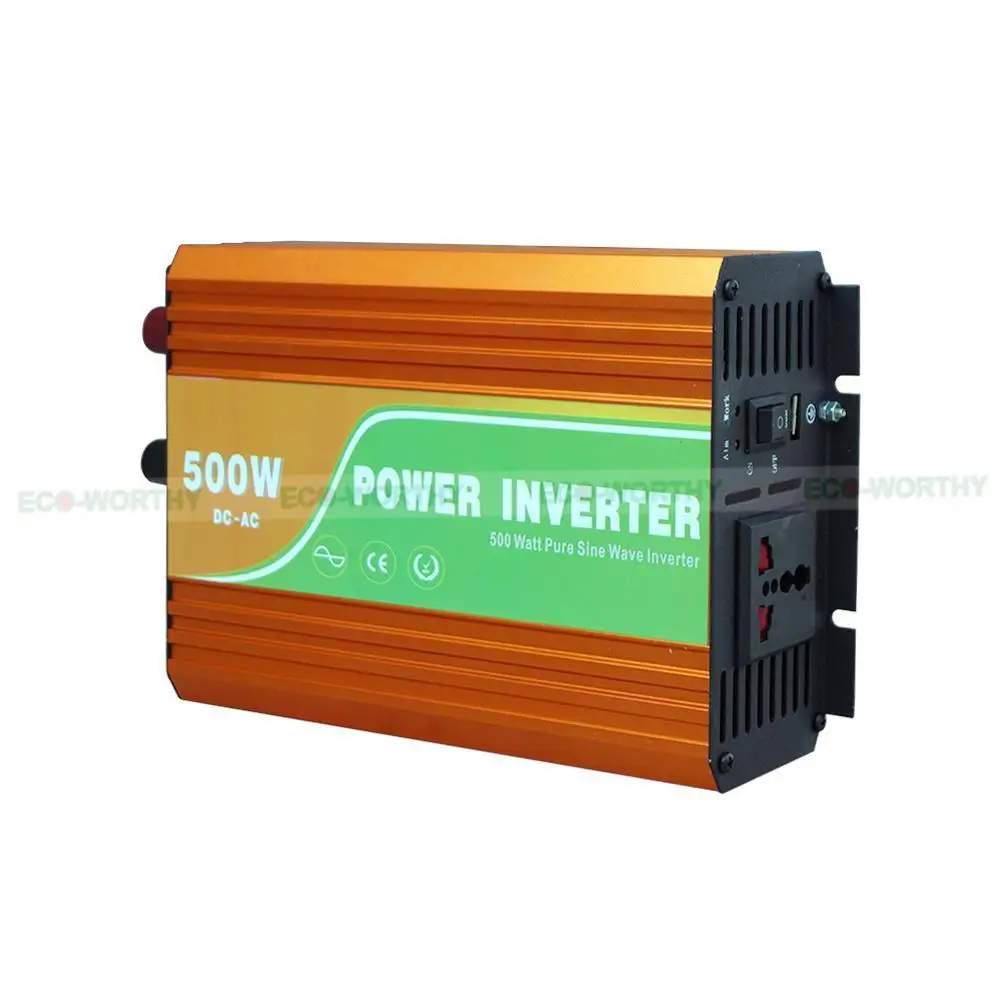

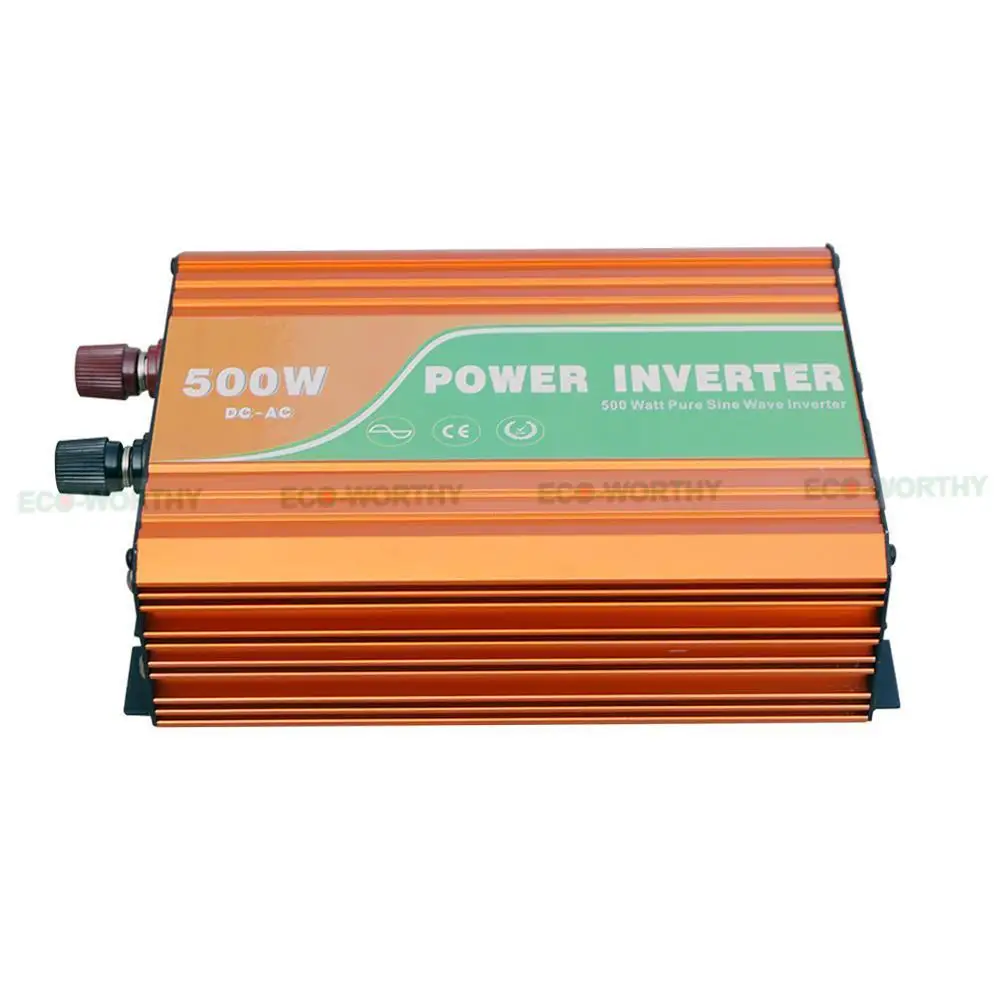

500W 12V to 220V Solarmodule Inverter Pure Sine Wave Wechselrichter for Home
1. Unique front and back double soft start technology
2. Core of CUP and the pulse width control technology of SPWM.
3.Special constant power technology.
4. Technology Of prevent the reverse Diode
5. With USB charge interface
6. Quarantine of front and back level
7. Perfect powerful fault protection function (including the overload protection, over current protection, high temperature protection, short circuit protection, the battery reverse connect protection, and it is also equipped with inbuilt fuse)
8. Battery protective function (Battery over-voltage under-voltage protection, overvoltage, under voltage recovery and related function)
9. Shock-protect function
10. AC pure sine wave output has no effect on the use lifetime of equipment
11.This inverter with Aluminum shell, surface of sandblasting anodic oxidation treatment, high hardness and prefect shape.
| OUTPUT | OUTPUT VOLT | 220VAC | |
| CONTINUOUS POWER | 500W | ||
| SURGE POWER | 1000W | ||
| WAVEFORM | PURE SINE WAVE | ||
| FREQUENCY | 50Hz | ||
| AC REGULATION | LOW & HIGH 10% | ||
| Non-load Consumption | <7W | ||
| EFFICEINCY | >90% | ||
| INPUT | USB OUTPUTt | 5V | |
| DC VOLTAGE | LED DISPLAY POWER & FAIL STATUS | ||
| INPUT RANGE | 10-15VDC | ||
| PROTECTION | WORKING INPUT | 12VDC | |
| FUSE | 35A | ||
| Low battery alarm | 10.5+0.3V | ||
| Low battery shut down | 10+0.5V | ||
| Over voltage shut down | 15.5+0.5V | ||
| Over load shut down | 600W OVER 10 SECOND | ||
| Over heating shut down | >75 | ||
| Over Thermal | shut down the output | ||
| Working Temperature | BETWEEN -10 and +50 | ||
| soft start | |||
| OTHER | DIMENSION(L*W*H) | 235*146*66mm | |
